注释及文档

注意，本文所讲的API，为基于对代码注释而自动生成的开发文档

docfx 是一个开放源代码静态站点生成器，可以从源代码和 Markdown 文件生成文档。

github :传送门

官网 : 传送门

学习视频: 传送门

快速入门 :传送门

安装

前置条件

- 熟悉命令行
- 安装 .NET SDK 6.0 或 更高

dotnet tool update -g docfx

在Optix项目建立代码文档

打开Optix NetSolution

alt text

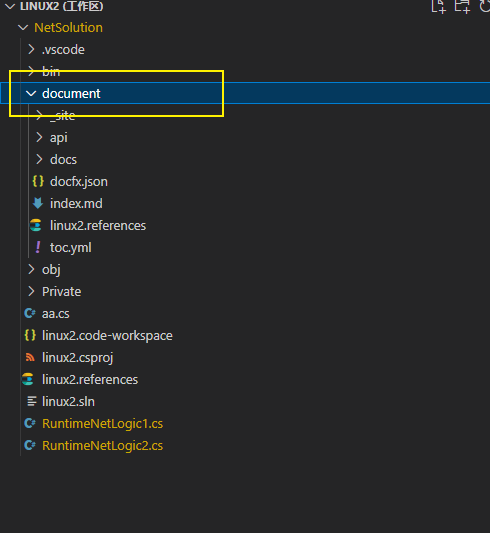

新建 document 文件夹用来存放文档材料

alt text

创建 docfx 项目

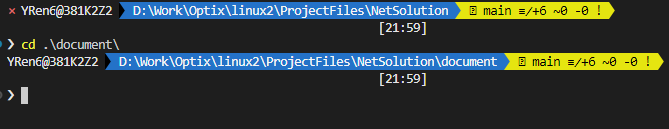

打开命令行,并定位到 document 文件

alt text

初始化项目目录

docfx init -q

-q 这个参数表示忽略询问，直接生成。如果需要自定义配置，可取消 -q 这个参数。

目录结构如下:

docfx_project
.
├── api
│   ├── index.md
│   └── toc.yml
├── apidoc
├── articles
│   ├── intro.md
│   └── toc.yml
├── docfx.json
├── images
├── index.md
├── src
└── toc.yml

配置 docfx 项目

打开 docfx.json 文件

内容改为如下:

{
  "metadata": [
    {
      "src": [
        {
          "src": "../../",
          "files": [
            "**/*.csproj"
          ]
        }
      ],
      "dest": "api",
      "globalNamespaceId":"NetLogic"
    }
  ],
  "build": {
    "content": [
      {
        "files": [
          "**/*.{md,yml}"
        ],
        "exclude": [
          "_site/**"
        ]
      }
    ],
    "resource": [
      {
        "files": [
          "images/**"
        ]
      }
    ],
    "output": "_site",
    "template": [
      "default",
      "modern"
    ],
    "globalMetadata": {
      "_appName": "mysite",
      "_appTitle": "mysite",
      "_enableSearch": true,
      "pdf": true
    }
  }
}

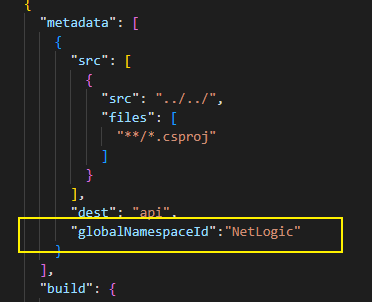

其中最主要是如下这项，其他可以不用管

alt text

构建 docfx 项目

检索元数据

从 .net项目中提取信息

docfx metadata

创建 html

docfx build

默认的输出内容在 _site 文件夹中

也可以使用如下命令，进行创建和测试

docfx build --serve

Searching custom plugins in directory C:\Users\yren6\.dotnet\tools\.store\docfx\2.75.3\docfx\2.75.3\tools\net6.0\any\...
Post processor ExtractSearchIndex loaded.
No files are found with glob pattern images/**, excluding <none>, under directory "D:\Work\Optix\linux2\ProjectFiles\NetSolution\document"
6 plug-in(s) loaded.
Building 3 file(s) in ConceptualDocumentProcessor(BuildConceptualDocument=>ValidateConceptualDocumentMetadata)...
Building 3 file(s) in TocDocumentProcessor(BuildTocDocument)...
Building 10 file(s) in ManagedReferenceDocumentProcessor(BuildManagedReferenceDocument=>SplitClassPageToMemberLevel=>ValidateManagedReferenceDocumentMetadata=>ApplyOverwriteDocumentForMref=>FillReferenceInformation)...
Applying templates to 16 model(s)...
XRef map exported.
Extracting index data from 13 html files
Serving "D:\Work\Optix\linux2\ProjectFiles\NetSolution\document\_site" on http://localhost:8080. Press Ctrl+C
to shut down.

可以用浏览器 http://localhost:8080 端口查看效果

导出 pdf

docfx pdf

发布/分享给用户

  • 网页发布

通过 web server 接入目录 _site 即可访问

  • PDF分享

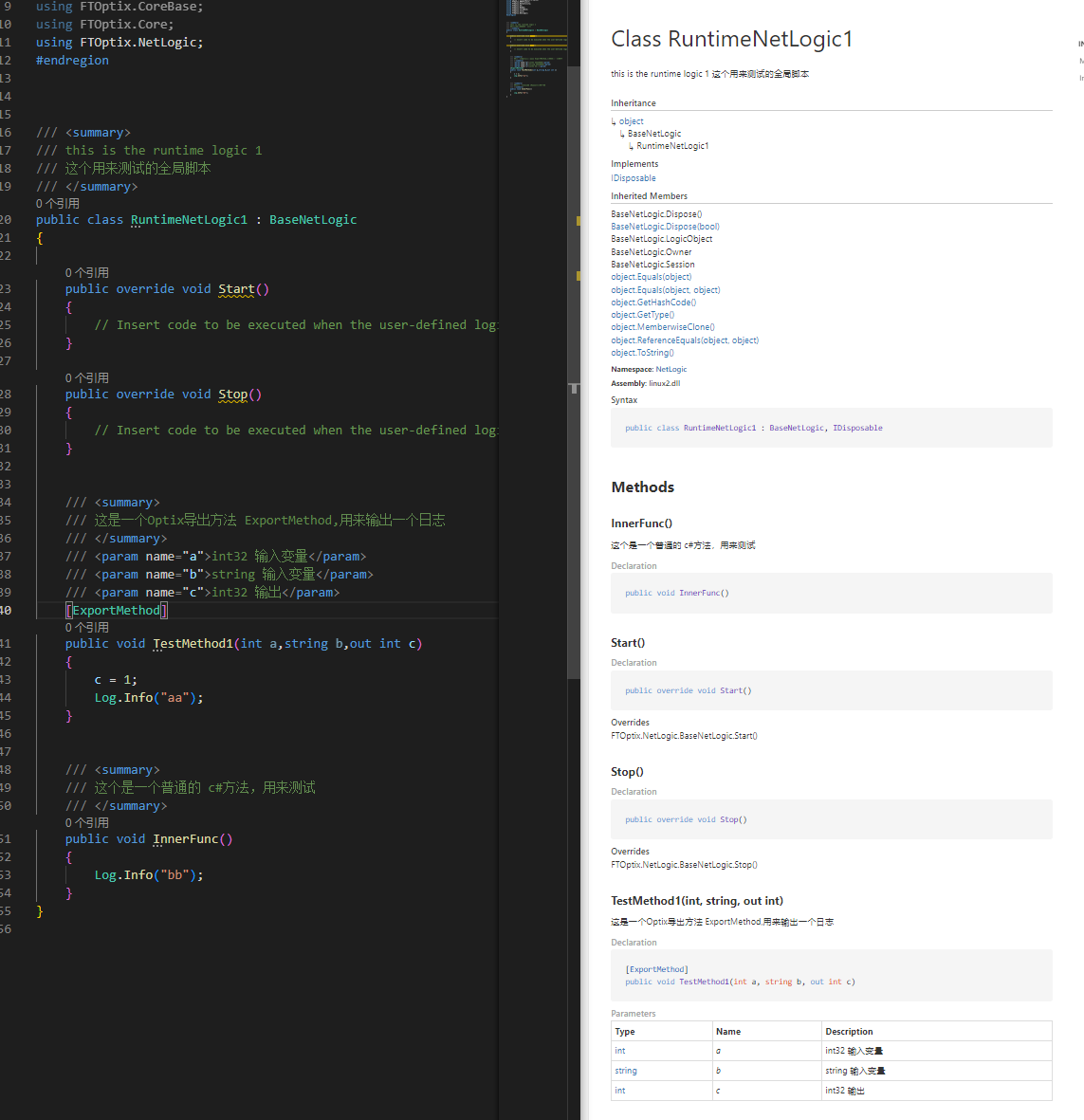

示例

alt text

c#的注释格式说明

微软官方说明 传送门

示例：

namespace Graphics
{
    /// <summary>
    /// Class <c>Point</c> models a point in a two-dimensional plane.
    /// </summary>
    public class Point
    {
        /// <value>
        /// Property <c>X</c> represents the point's x-coordinate.
        /// </value>
        public int X { get; set; }

        /// <value>
        /// Property <c>Y</c> represents the point's y-coordinate.
        /// </value>
        public int Y { get; set; }

        /// <summary>
        /// This constructor initializes the new Point to (0,0).
        /// </summary>
        public Point() : this(0, 0) {}

        /// <summary>
        /// This constructor initializes the new Point to
        /// (<paramref name="xPosition"/>,<paramref name="yPosition"/>).
        /// </summary>
        /// <param name="xPosition">The new Point's x-coordinate.</param>
        /// <param name="yPosition">The new Point's y-coordinate.</param>
        public Point(int xPosition, int yPosition)
        {
            X = xPosition;
            Y = yPosition;
        }

        /// <summary>
        /// This method changes the point's location to
        /// the given coordinates. <see cref="Translate"/>
        ///
        /// <sample>
        ///
        /// Sample 1
        ///
        /// <code>
        /// var x = 100;
        /// var y = 200;
        /// point.Move(x,y);
        /// </code>
        /// </sample>
        /// </summary>
        /// <param name="xPosition">The new x-coordinate.</param>
        /// <param name="yPosition">The new y-coordinate.</param>
        public void Move(int xPosition, int yPosition)
        {
            X = xPosition;
            Y = yPosition;
        }

        /// <summary>
        /// This method changes the point's location by
        /// the given x- and y-offsets.
        /// <example>For example:
        /// <code>
        /// Point p = new Point(3, 5);
        /// p.Translate(-1, 3);
        /// </code>
        /// results in <c>p</c>'s having the value (2, 8).
        /// <see cref="Move"/>
        /// </example>
        /// </summary>
        /// <param name="dx">The relative x-offset.</param>
        /// <param name="dy">The relative y-offset.</param>
        public void Translate(int dx, int dy)
        {
            X += dx;
            Y += dy;
        }

        /// <summary>
        /// This method determines whether two Points have the same location.
        /// </summary>
        /// <param name="o">
        /// The object to be compared to the current object.
        /// </param>
        /// <returns>
        /// True if the Points have the same location and they have
        /// the exact same type; otherwise, false.
        /// </returns>
        /// <seealso cref="operator=="/>
        /// <seealso cref="operator!="/>
        public override bool Equals(object o)
        {
            if (o == null)
            {
                return false;
            }
            if ((object)this == o)
            {
                return true;
            }
            if (GetType() == o.GetType())
            {
                Point p = (Point)o;
                return (X == p.X) && (Y == p.Y);
            }
            return false;
        }

        /// <summary>
        /// This method returns a Point's hashcode.
        /// </summary>
        /// <returns>
        /// The int hashcode.
        /// </returns>
        public override int GetHashCode()
        {
            return X + (Y >> 4);    // a crude version
        }

        /// <summary>Report a point's location as a string.</summary>
        /// <returns>
        /// A string representing a point's location, in the form (x,y),
        /// without any leading, training, or embedded whitespace.
        /// </returns>
        public override string ToString() => $"({X},{Y})";

        /// <summary>
        /// This operator determines whether two Points have the same location.
        /// </summary>
        /// <param name="p1">The first Point to be compared.</param>
        /// <param name="p2">The second Point to be compared.</param>
        /// <returns>
        /// True if the Points have the same location and they have
        /// the exact same type; otherwise, false.
        /// </returns>
        /// <seealso cref="Equals"/>
        /// <seealso cref="operator!="/>
        public static bool operator==(Point p1, Point p2)
        {
            if ((object)p1 == null || (object)p2 == null)
            {
                return false;
            }
            if (p1.GetType() == p2.GetType())
            {
                return (p1.X == p2.X) && (p1.Y == p2.Y);
            }
            return false;
        }

        /// <summary>
        /// This operator determines whether two Points have the same location.
        /// </summary>
        /// <param name="p1">The first Point to be compared.</param>
        /// <param name="p2">The second Point to be compared.</param>
        /// <returns>
        /// True if the Points do not have the same location and the
        /// exact same type; otherwise, false.
        /// </returns>
        /// <seealso cref="Equals"/>
        /// <seealso cref="operator=="/>
        public static bool operator!=(Point p1, Point p2) => !(p1 == p2);
    }
}
